Product Description

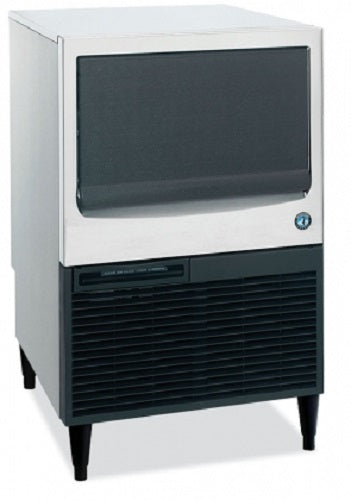

This listing is for a New HOSHIZAKI Ice Machine Self-Contained (with bin) 150Lb Ice Air Cool KM151BAH
- Dimensions: 23-3/4? W x 28-1/4? D x 39? H Up to 146 lbs of ice produced per 24 hours
- Up to 50 lbs of built-in storage capacity
- 24?W wide profile
- Air-cooled, Self Contained, Built in Storage Bin
- Produces crescent ice
- Slide in door with durable stainless steel exterior
- Ice maker with built in storage
- EverCheck™ alert system
- CycleSaver™ design
- R-134a refrigerant
- Power switch accessible without panel removal
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 7 amps (15 Amp Max fuse)
- 8.4 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1
- ENERGY STAR Qualified
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
ELECTRICAL & PLUMBING/KM-151B_H • 115V/60/1
• 15 amp Max Fuse/HACR Breaker Size
• IcemakerWater Supply Line:Minimum 1/4” Nominal IDCopperWater Tubing or Equivalent
• Icemaker Drain Line:Minimum 3/4” Nominal IDHard Pipe or Equivalent Water-Cooled Model (Lines Must be Independent of Icemaker)
• CondenserWater Supply Line:Minimum 1/4” Nominal ID CopperWater Tubing or Equivalent
• Condenser Drain/Return Line: Minimum 1/4” Nominal ID Hard Pipe (open drain system) or CopperWaterTubing (closed loop system) or Equivalent
